Tired of using non-customizable meeting UI SDKs that are not tailor-made to match your needs? Introducing UI Kit!
After months of designing, planning, and hard work, we’re thrilled to announce the release of our UI Kit 🎉
In this blog post, we’ll take a closer look at how the UI Kit is what it is and how you can use it in your projects seamlessly!
Learning from the feedback of our existing users, we quickly realized that what they really needed was a UI Kit - a set of components each made to serve a specific smaller purpose in a meeting that can be combined as per their needs, not a huge monolith component which loads the whole meeting for us with little customization.
And thus, we started work on two separate projects: web-core and this one, the UI-kit.
Web-core handles all the low-level media and network handling parts of a meeting and exposes simpler APIs for us to use. UI Kit then uses these APIs from the meeting object. To know more about the web-core project, read the blog post here.
The meeting object or members of this meeting object are used internally in our UI components to run specific logic.
Dyte UI Kit is made using web components, and they use Shadow DOM which makes the styling of each component isolated, so the CSS on your page doesn’t interfere with the styling of components.

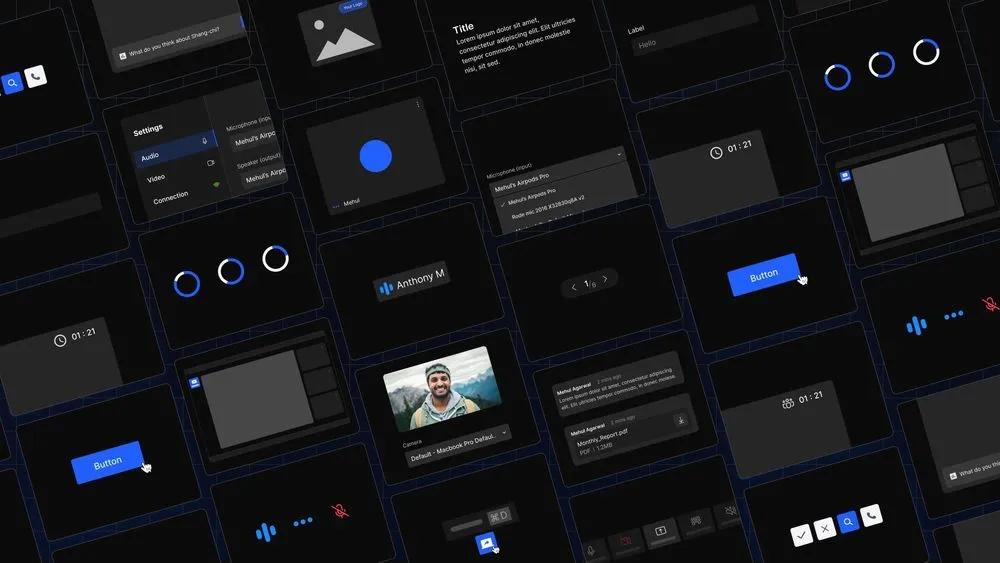

UI Kit Components
As we were making a set of UI components, we had to have a shared language among them so that they can be easily customized, with very little effort. Thus we used Design Tokens so that every component uses similar and shared values, which can all be tweaked with a single line of code, like a flip of a switch!
Every component uses design tokens with the help of CSS variables for styling so they can be easily customized.

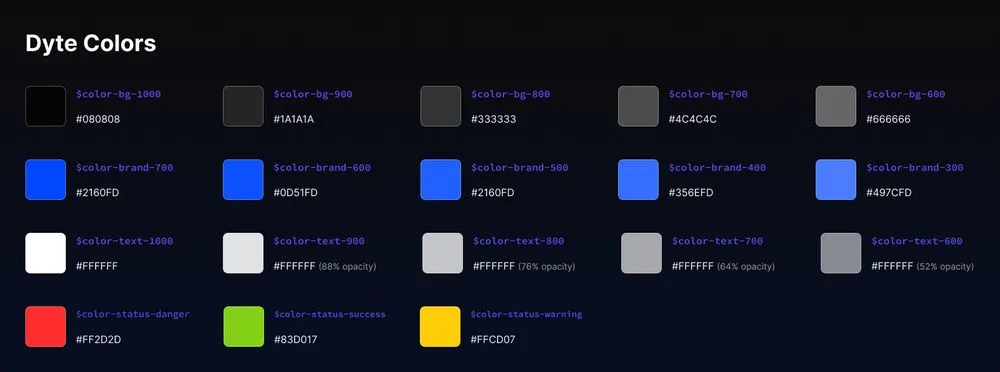

Dyte’s default color tokens
Apart from these design tokens, we’ve also tried to improve on the customization options available, with features like Internationalisation (i18n), and Icon Packs Support!
Each component that renders text or shows icons, will accept an iconPack
and
t
(i18n helper method) props that are used to render the icons and text. By
default, it uses our default icon pack and default language (English). An icon
pack object is basically an object consisting of a key which is the icon name
and the value which is just the SVG string of that icon.
And while building each component, we’ve also put emphasis on accessibility (a11y) so that users can easily navigate through the UI without the need for moving their mouse across the screen! Every element is screen reader friendly, and most images have an alt tag as well.
Whether it is to close your dialogs with the Escape
key or navigate through
the visual elements by clicking the Tab key, we’ve taken care of a lot of
things.
In terms of responsiveness, each component that is responsive would have a
size
property that takes in either sm
, md
, lg
or xl
.

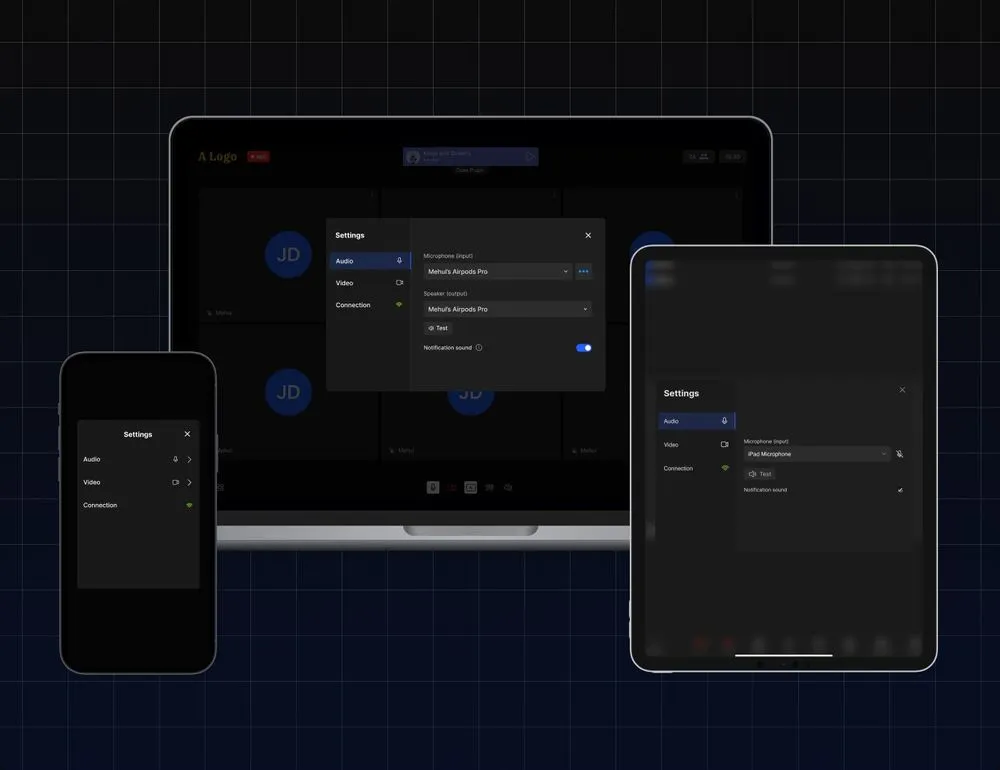

Settings component in various screen sizes
Here are the default breakpoints that we’ve used:
Breakpoint | Width |
---|---|
sm | 700px |
md | 1280px |
lg | 1920px |
xl | 2160px |
Now, to get a better understanding of using the UI Kit, let’s build a simple meeting UI step-by-step.
We’ll be using the React UI Kit along with React Web Core for the examples, do note that there are the ui-kit (plain web components) and angular-ui-kit packages as well which you can use according to whichever one is most suitable to you.
We also have some sample apps to get you started:
Let’s go step-by-step to build a simple and pleasant meeting UI.
Let’s start building a simple meeting UI by rendering your own video in a ParticipantTile component and with the ability to toggle your audio and video with the toggle components.
export default function Meeting() {
const { meeting } = useDyteMeeting();
return (
<div className="container">
<DyteParticipantTile participant={meeting.self}>
<DyteNameTag participant={meeting.self}>
<DyteAudioVisualizer participant={meeting.self} slot="start" />
</DyteNameTag>
</DyteParticipantTile>
<div className="actions">
<DyteMicToggle meeting={meeting} />
<DyteCameraToggle meeting={meeting} />
</div>
</div>
);
}
The meeting object as mentioned earlier is received from the web-core package. In this React example, we are using the react-web-core package which makes using web-core in React very easy with the help of easy-to-use hooks!
Each component either accepts a participant or meeting prop depending on what the component does.
The UI for the above would look like this:
Quick tip: You can change the slot property on DyteAudioVisualizer to end if you want to have the audio visualizer at the end of the name-tag.
We offer a plethora of customization options even in components! For instance,
you can change the name tag’s position with the nameTagPosition
prop.
If we set it to bottom-right
, the UI would look like this:
Basically, any normal meeting UI would have these basic three elements: header, stage, and the control bar.
We will render some basic metadata components in the header, such as showing the meeting title and the participant count.
Code:
<div id="header">
<DyteMeetingTitle meeting={meeting} />
<DyteParticipantCount meeting={meeting} />
</div>
Now, to render the active participants list in a grid inside the stage. We’re rendering grid inside the stage, just so that we can add a sidebar to this stage in the next steps.
const activeParticipants = useDyteSelector(
(meeting) => meeting.participants.active
);
return (
<div id="meeting">
{/* Header here */
<div id="stage">
<div id="grid">
{activeParticipants.toArray().map((participant) => (
<ParticipantTile participant={participant} meeting={meeting} />
))}
<ParticipantTile participant={meeting.self} meeting={meeting} />
</div>
</div>
</div>
);
What is this ParticipantTile
component, you may ask? Well, it’s just a
component that renders the entire ParticipantTile layout as we saw in the
previous example, just re-using the code.
function ParticipantTile({ participant, meeting }) {
return (
<DyteParticipantTile participant={participant} className="participant-tile">
<DyteNameTag participant={participant} meeting={meeting}>
<DyteAudioVisualizer participant={participant} />
</DyteNameTag>
</DyteParticipantTile>
);
}
Now, for the control bar, we’ll just render the MicToggle and CameraToggle components like in the previous example.
With some nice styling, the UI would look like this:
So now, you will now only be able to see the participants in the grid, but you
would not be able to hear them. To hear them, we have another component called
DyteParticipantsAudio
component which handles audio for all participants,
screen-shares in a single component.
<DyteParticipantsAudio meeting={meeting} />
That’s it!
Next, we’ll add a ChatToggle component that toggles the visibility of the Chat component in a sidebar. To do this, we’ll use the Events emitted from the Toggle button and use them to render the sidebar.
export default function Meeting() {
const [states, setStates] = useState({ activeSidebar: false, chat: 'none' });
const meetingEl = useRef();
// Dyte hooks here
useEffect(() => {
const onStateUpdate = (e) => {
setStates({ ...states, ...e.detail });
};
meetingEl.current.addEventListener('dyteStateUpdate', onStateUpdate);
return () => {
meetingEl.current.removeEventListener('dyteStateUpdate', onStateUpdate);
};
}, []);
return (
<div id="meeting" ref={meetingEl}>
{/** Header here */}
<div id="stage">
<div id="grid"></div>
{states.activeSidebar && (
<div id="sidebar">
<DyteSidebar meeting={meeting} states={states} />
</div>
)}
</div>
<div id="controlbar">
<DyteChatToggle meeting={meeting} states={states} />
</div>
</div>
);
}

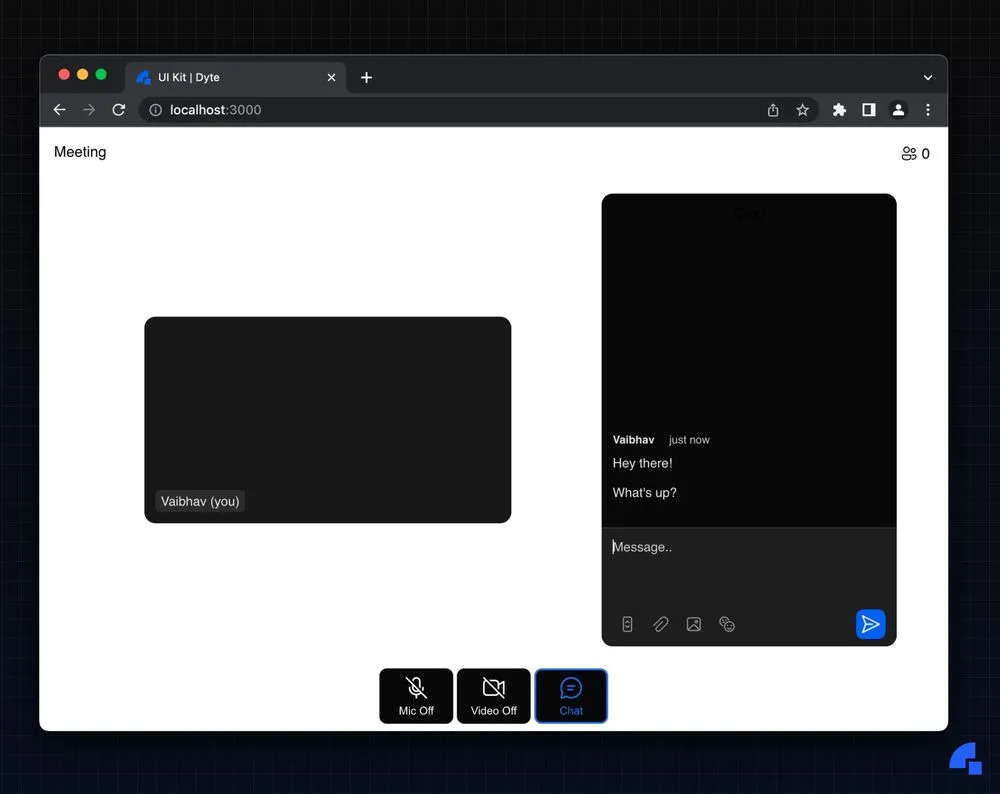

I’ve added the DyteChatToggle component to the control-bar, which will emit an
event when clicked. We listen to this event on the parent meetingEl
element in
the useEffect
and update our states
object. This states
object is then
used to render the sidebar, then we just pass along the states object to it so
that it renders just the chat component.
NOTE: You don’t need to manage the states object manually for passing it around to components as it is managed by a global store.

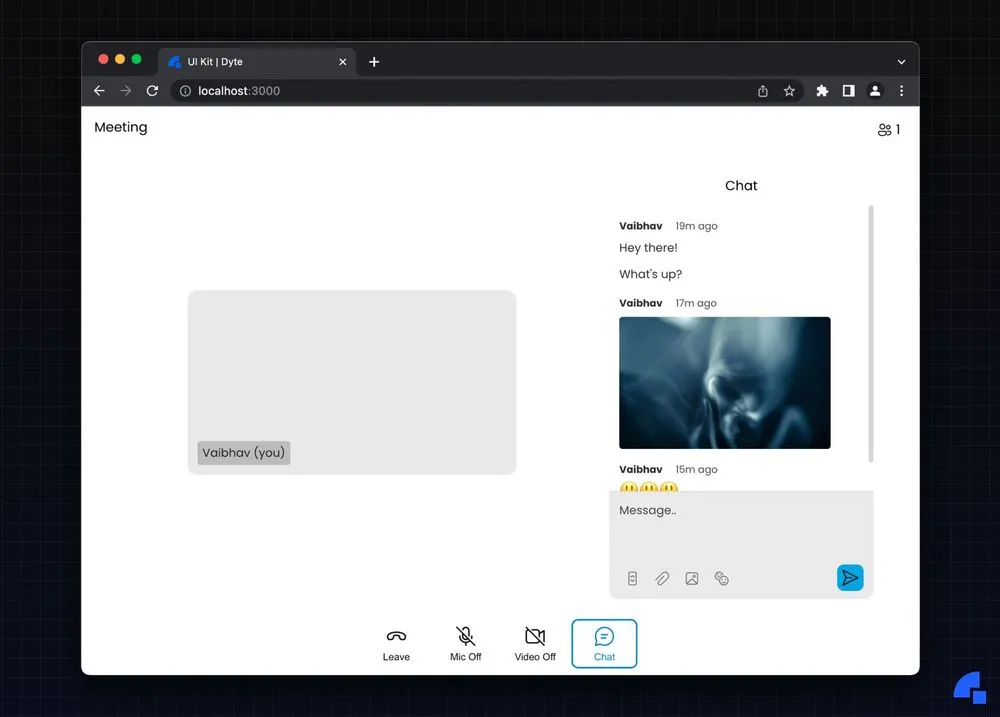

That is it! We now have worked with events and states to toggle the visibility of components.

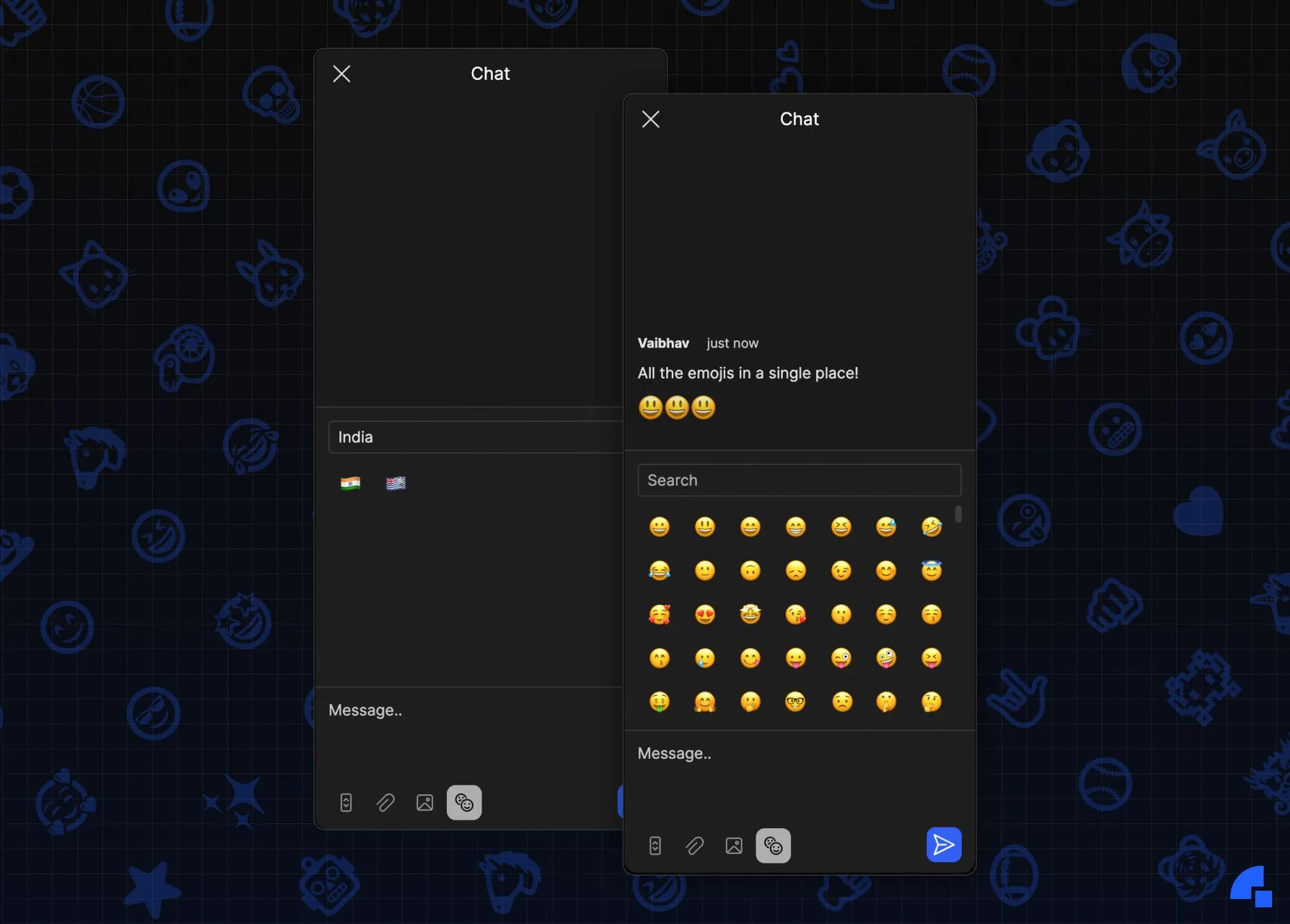

Oh, and did we tell you, you have some cool features in Chat such as:
Now we have rendered some things for a basic meeting, but we still don’t have a way to exit the meeting or open up an image viewer when a user sends an image in the chat.
For dialogs/modals we have an intuitive DyteDialog
component that we will use.
First, let’s add the DyteLeaveButton
to the control-bar which will emit the
actual event.
<DyteLeaveButton meeting={meeting} />
Next, the onStateUpdate
we wrote above will handle the events emitted for both
the leave meeting modal and the image viewer.

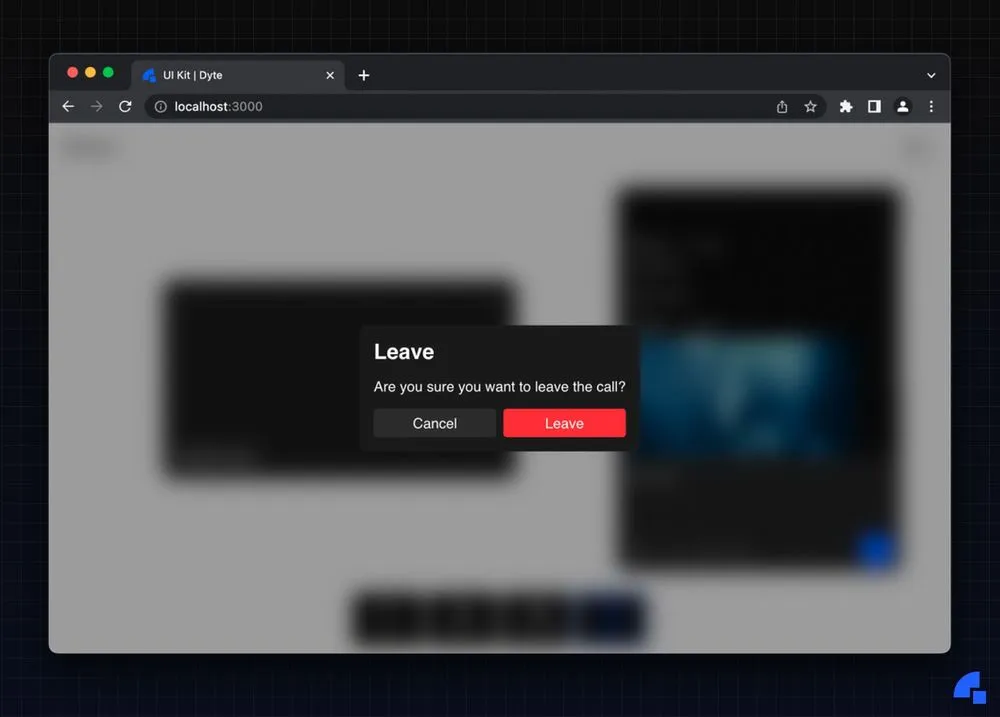

So now, we just have to render the LeaveMeeting component according to the
activeLeaveConfirmation
state value.
{
states.activeLeaveConfirmation && (
<DyteDialog
open
onDyteDialogClose={() =>
setStates({ ...states, activeLeaveConfirmation: false })
}
hideCloseButton
>
<DyteLeaveMeeting meeting={meeting} />
</DyteDialog>
);
}
Here, open
is a boolean value, which is set to true
here. The dialog also
emits an onDyteDialogClose
event which we will listen to, to update our local
state to hide the modal.
That’s it!
Same for the ImageViewer component:
{
states.image && (
<DyteDialog
open
onDyteDialogClose={() => setStates({ ...states, image: null })}
hideCloseButton
>
<DyteImageViewer image={states.image} />
</DyteDialog>
);
}
I talked at great length about design tokens at the beginning, but how do you
customize them? The answer is provideDyteDesignSystem()
which is a utility
function, which takes in basic design tokens and applies them to an element by
doing some processing beforehand so it works properly with the components.
With it, you can customize:
light
, dark
and darkest
which get applied. You can then pass in other
colors separately to override these if you want.To apply some design tokens, just go to the useEffect
and use this utility:
provideDyteDesignSystem(meetingEl.current, {
theme: 'light',
googleFont: 'Poppins',
colors: {
brand: {
300: '#0a78a9',
400: '#0c8ec8',
500: '#0ea4e7',
600: '#26b3f2',
700: '#48bef4',
},
background: {
700: '#bcbcbc',
},
'video-bg': '#eaeaea',
danger: '#ff909e',
},
});
That is it! Easy as that.
Oh, and we left out one component, there’s also a DyteAvatar
component which
renders your Avatar - your picture
which you have set for a user or the
initials if the picture doesn’t exist.

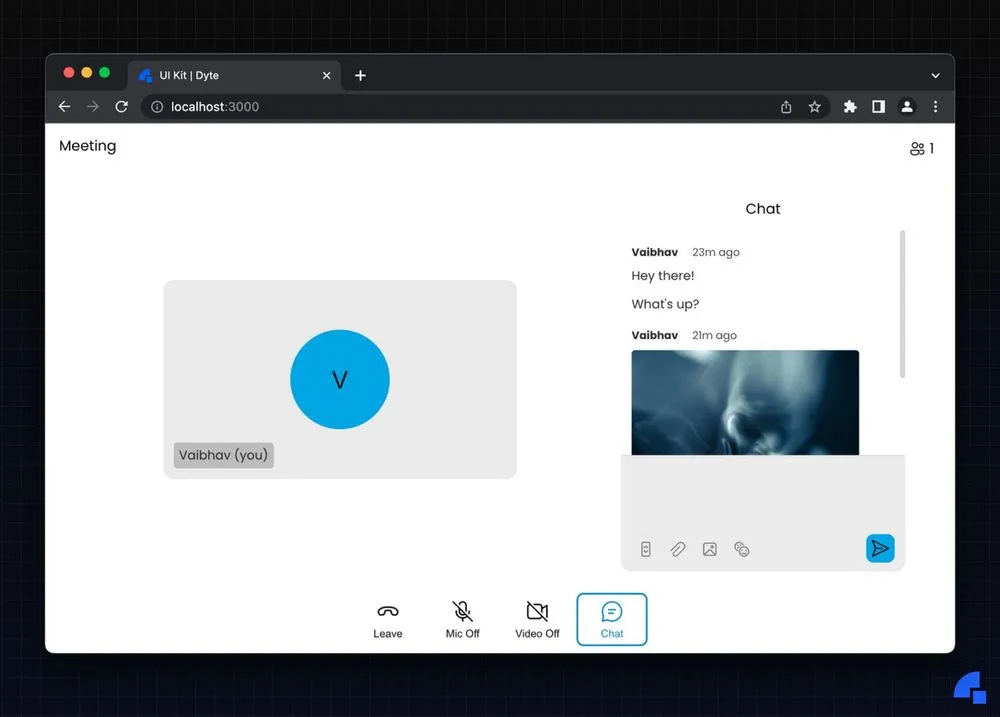

Just add the component to the ParticipantTile
component, it will look like
this:
We’ve just built a basic meeting UI by using the individual components.
If you’re not a fan of using individual components or you would like to write
less code with just as much level of customization of the UI, we have the
powerful DyteMeeting
component!

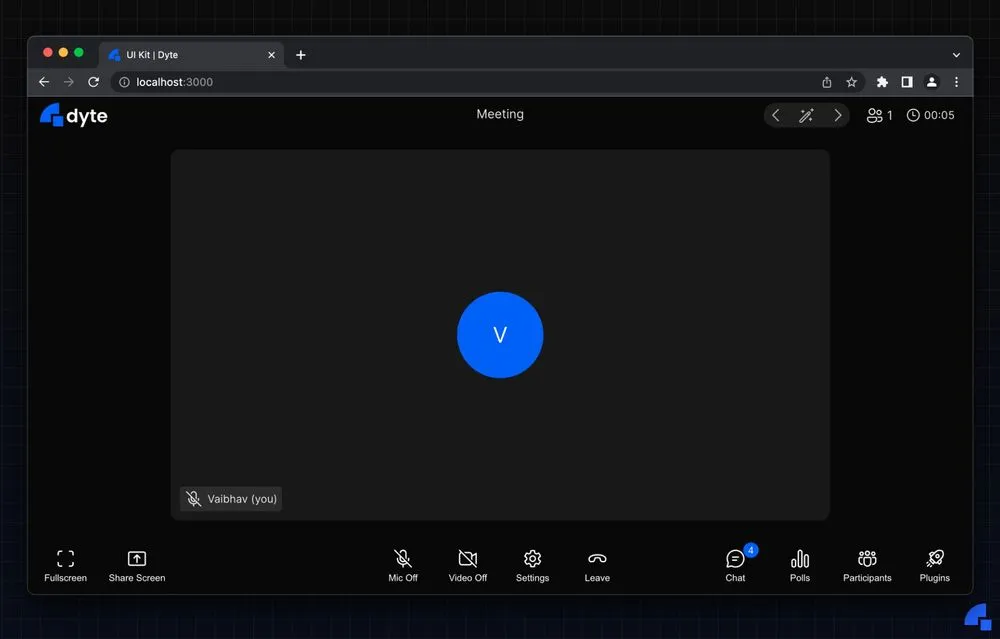

Just pass the meeting object to it and it will render the meeting UI according to your preset values.
<DyteMeeting meeting={meeting} />
It comes with all the essentials you would need in a meeting, from indicators for Recording and Live streaming, to every sidebar option available.
This DyteMeeting
component is a very special component, it renders all the UI
based on a simple UI Config object, nothing more.
An upcoming blog post goes in-depth into how the component renders UI from a Config returned from the Server.
